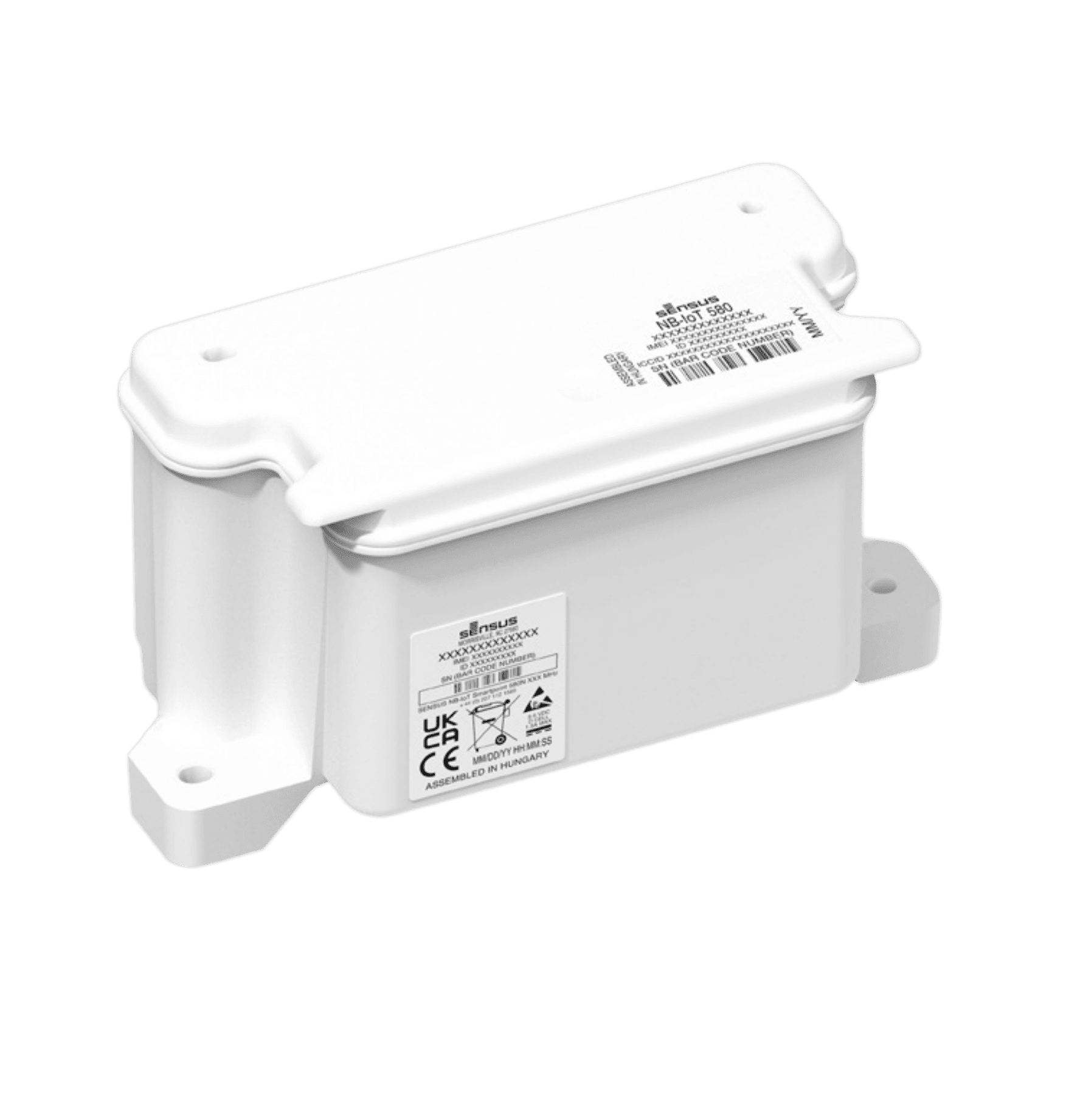

NB-IoT 580N SmartPoint^®

Sensus NB-IoT 580N SmartPoint^® Module enables utilities to deploy Advanced Metering Infrastructure (AMI) using commercial NB-IoT networks. The module pairs SensusRF and standard OMS wireless M-Bus (wM-Bus) radio water meters to NB-IoT communications, allowing utilities to operate within existing cellular infrastructure from day one of deployment.

The SmartPoint supports license-free 433 MHz and 868 MHz short-range radio bands to receive SensusRF or wM-Bus meter data and transmits onward via 3GPP-approved NB-IoT bands (B3, B8, B12, B20, B28). It acts as a bridge between low-power short-range meter radio and long-range NB-IoT communication.

Designed for flexible AMI architectures, the NB-IoT 580N can complement new or existing FlexNet deployments without requiring a dedicated utility radio network. Its two-way communication platform supports remote firmware updates and configuration, helping control both deployment and operational costs.

Features

• Supports license-free ISM short-range radio (433 MHz / 868 MHz)
• Connects to commercial NB-IoT networks (3GPP approved bands)
• Connects to commercial NB-IoT networks (3GPP approved bands)
• End-to-end AES-256 encryption
• Bidirectional communication via SensusRF
• Firmware upgradable
• Configurable meter sampling rate
• Configurable data transmission rate
• Critical alarm push capability
• Battery powered (internal D-cell)
• Designed for installation in meter pits and boundary boxes

Specifications

• Supported NB-IoT bands: B3, B8, B12, B20, B28
• Supported AMR band frequencies: 433 MHz / 868 MHz
• Endpoint pairing ratio: 1:1
• Security: AES-256 end-to-end encryption
• Operating temperature: −20 °C to +50 °C
• Protection class: IP68
• Power supply: Internal D-cell battery
• Battery life: Up to 15 years*
• Dimensions: 140 x 63.4 x 78.7 mm
• Weight: 280 g
• Configuration interface: RNI / FieldLogic
