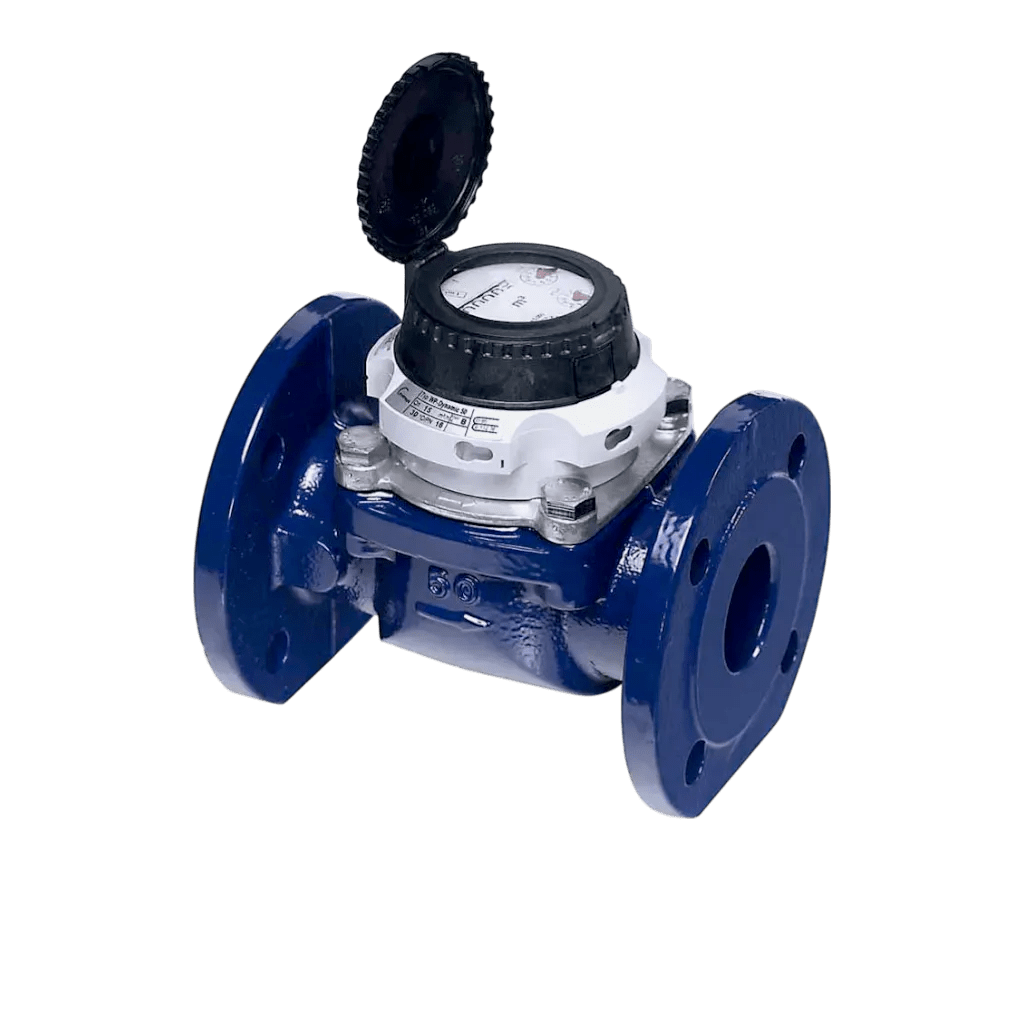

WP-Dynamic BMF Water Meter

Sensus WP-Dynamic BMF water meter is a Woltman turbine water meter that is copper alloy-free for cold water up to 50 °C and hot water up to 130 °C.

The WP-Dynamic BMF water meter measures:

• Desalinated/demineralized water
• Caustic soda up to 20%
• Saline water up to 10%
• Chlorinated water up to 1%
• Glycol-water solutions up to 30%
• Caustic solutions up to ph value 9
• Other liquids by request

Features

• All parts in contact with the liquid are made of plastic or stainless steel
• Same performance data as standard WP-Dynamic meters
• Symmetrical calibration adjustment
• Hermetically sealed register (IP 68)
• Hydrodynamically balanced rotor (≤DN 300)
• Symmetrical calibration adjustment (≤DN 300)
• Register may be rotated through 360°
• High overload capability
• Powder coating affords max. corrosion protection
• Not affected by external magnetic fields
• Free of copper alloy (BMF) for aggressive media

Specifications

• Cold water meter 50 °C and hot water 130 °C
• Pressure rate PN 16
