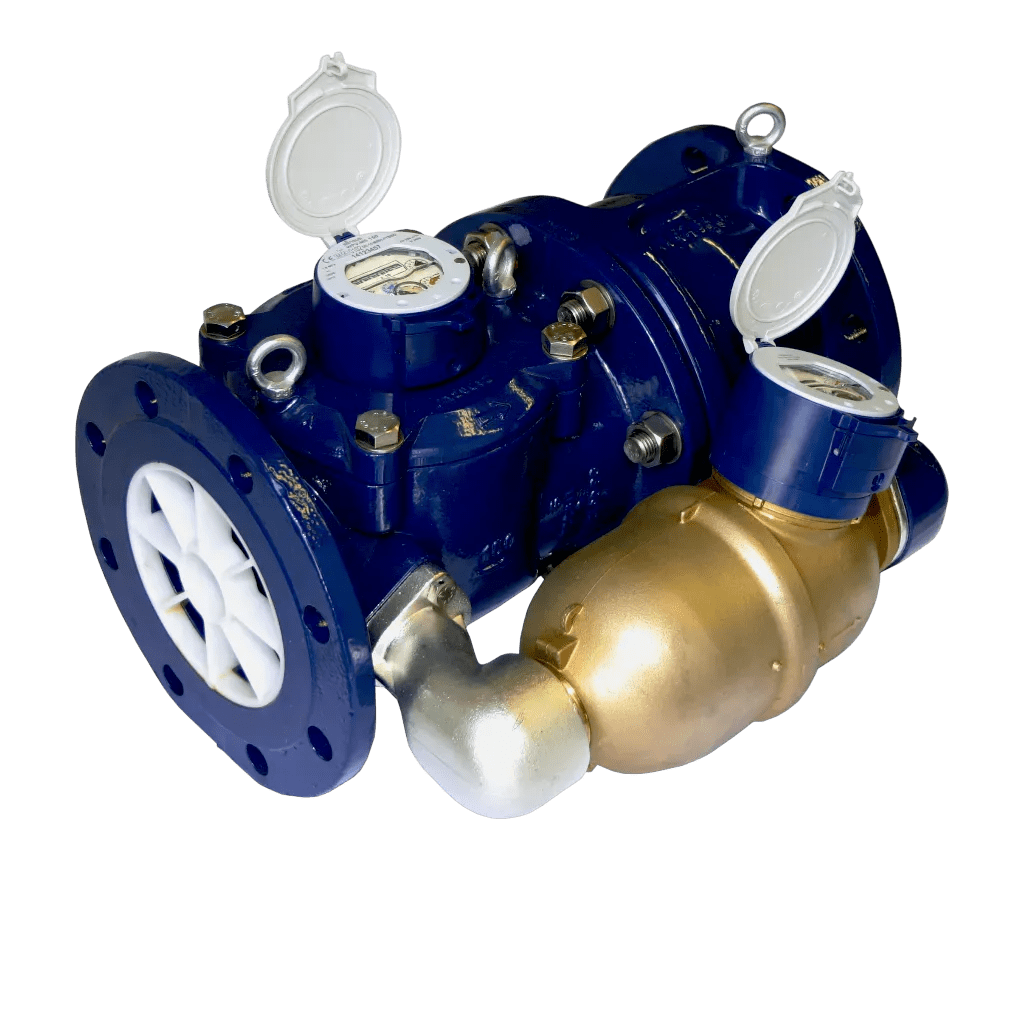

WPV-MS 150 Water Meter

Commercial & industrial compound water meter for cold water up to 50ºC

Sensus WPV-MS 150 is a compound meter for:

Measurement for billing of cold potable water up to 50 °C at high flow rates as well as very small flow rates for extremely wide spread flow profiles.
Measurement of medium and high flow rates
Measurement of extremely low flow (e.g., in light load period)
Leakage control

Meter with pattern approval acc. to 2004/22/EC (MID) annex MI001
Spring-loaded changeover valve with low headloss and extended lifetime
Bypass meter specified as a piston meter RK-MS HRI, register copper/glass, protection class IP68
Used materials resistant up to 50°C medium temperature
Main and bypass meters fitted with pulse and data interface HRI-Mei and/or pulsers type OD (with bypass meter RK-MS HRI)
Overall length acc. to DIN with spool piece
Main meter and bypass meter can be equipped with Encoder ER56 register
No straight upstream or downstream pipe due to integrated flow straightener (U0D0)
Powder coating ensures maximum corrosion protection
Meter can be submerged, protection class IP68 Register prepared for HRI-Mei and Opto OD pick-up

Options:

¼” pressure monitoring port
Spool piece for extension of meter casing as per DIN 19625"
Main and bypass meters fitted with pulse and data interface HRI-Mei and/or pulsers type OD (with bypass meter 612 MTW-HRI)
